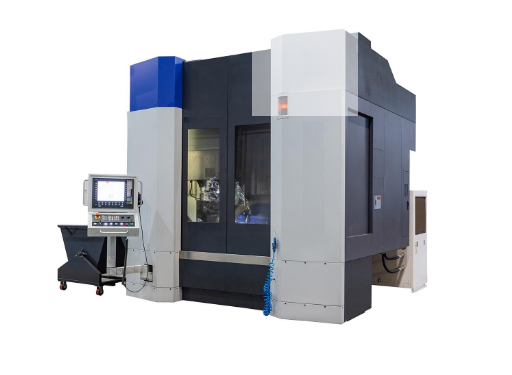

CNC Bevel Gear Cutting Machine
a six-axis full functional machine for dry/wet cutting, which is designed for high-precision and high-efficiency cutting of spiral bevel gears and hypoid gears.Under normal processing conditions, the cutting precision reaches Level 5, specified in standard
Machine Features:
1、Vertical Gantry Structrue, with stable and reliable perfomance and high degree of processing accuracy;
2,、High-rigid motorized spindle with direct-drive high torque motors;
3,、Dry cutting with high-effciency,environmentally-friendly and energy-saving, lower cost of processing.
4、Auotmatic loading, perpheral machine is neat and clear.
Function Configurations:
1,、Including FaceHobbing and FaceMilling;
2,、High-speed dry cutting;
3,、Including HCS Hypoid Cutting Control Software;
4、Full closed-loop control,and all axes with high-precision encoders,workpiece spindle with high-precision angel encoder;
5,、Workholding system with disc spring for hydraulic clamping to relex, and clamping measurement;
6,、Including acutomatic stock divider;
7、Alam with Help system;
8,、Safe protection control module (including ESR, Emergency withdraw,Current protection and Temperature protection );
9,、Automatic loading (option).
|
Specification |
Value |
|
|
Cutter size |
Face Milling |
φ(2.7～9)＂ |
|
Face Hobbing |
R(39～105）mm |
|
|
Workpiece Parameters |
Max. Transmission ratio |
（10:1） |
|
Max.transverse module(mm) |
10 |
|
|
Range of Tooth numbers |
5～200 |
|
|
Max.Pitch diameter(mm) |
350 |
|
|
Spindle Taper Outside Diameter(mm) |
φ128.1906 |
|
|
Workpiece Spindle Taper |
（1:18.2857） |
|
|
Reducing sleeve 1 Taper Bore, Outside diameter and Taper |
φ99.2187mm （1:19.6923） |
|
|
Tool spindle nose taper, Outside diameter and Taper |
φ58.221mm (1:24) |
|
|
Machine Dimension ( including guards) |
L(mm) |
4500 |
|
W(mm) |
4000 |
|
|
H(mm) |
3300 |
|
|
Gross Power (Kw) |
100 |
|
|
Net Weight (Kg) |
26500 |
|
|
Floor Space (mm2) |
4500×5500 |
|
